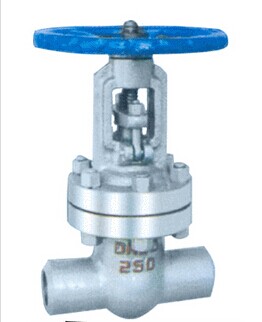

焊接閘閥

銷售電話:15901687301
圖文傳真:021-67231101
所屬係列: 閘閥係列
名    稱: 焊接閘閥
型    號: Z62Y
檢索關鍵字: 焊接閘閥 上海閥門
產品名稱: 焊接閘閥
產品型號: Z62Y
產品口徑: DN50-600
產品壓力: 1.0~32.0MPa
產品材質: 鑄鋼、不鏽鋼等
產品簡介: 製造標準:中國GB、機械部JB、化工標準HG、美標API、ANSI、德標DIN、日本JIS、JPI、英標BS生產。閥體材質:銅、鑄鐵、鑄鋼、碳鋼、WCB、WC6、WC9、20#、25#、鍛鋼、A105、F11、F22、不鏽鋼、304、304L、316、316L、鉻鉬鋼、低溫鋼、鈦合金鋼等。工作壓力1.0Mpa-50.0Mpa。工作溫度:-196℃-650℃。連接方式:內螺紋、外螺紋、法蘭、焊接、對焊、承插焊、卡套、卡箍。驅動方式:手動、氣動、液動、電動。上海冈本视频网站閥門有限公司擁有全球最頂尖的生產設備和技術工程師,有能力按照各國標準以及各種行業標準生產製造優質閥門。
聯係電話: 15901687301
產品詳情

執入標準Administer standard

● 製造與驗收技術條件按日本火力發電用閥門標準E101和JB/T3595-93的規定;
● 結構長度按E101的規定或按用戶提供尺寸
● 焊接坡口接電力工業管理標準78DG的規定或按用戶提供尺寸。
● The manufalture and aueptanle specigication shan be based on the japanese standard E101 applied for the thermal powerand JB/T3595-93
● The length shall bein line with E101 or by user’s speeification.
● Welding groove shan be in auordanle with power industrh spe-cification 78DG or hg user’ specification
● The size in inclose is old production’s size

性能規範Property and specifiecation
產品型號 Product type公稱壓力PN(MPa)Nominal pressure 試驗壓力(MPa)Test pressure 工作壓力(MPa)Working pressure 工作溫度(℃)Working temperature 適用介質Appicable medium
強度試驗Sheel test 密封試驗/上密封實驗Seal test
Z960Y-250 25 37.5 27.5 - ≤425 水、蒸汽、Water,steam
Z960Y-320 32 48.0 36.0 - ≤425
Z960Y-P54100 - 30.0 22.0 P5410 ≤540 蒸汽 Steam
Z960Y-P54170 - 48.0 36.0 P5417 ≤540
主要零件材料Matecrial for main parts
零件名稱Part name 材料牌號Material designation
閥體Body WCB WC6 WC9
閥板Disc WCB WC6 WC9
閥蓋Bonnet 25 12Cr1Mo1VA
閥杆Stem 1Cr17Ni2 20Cr1Mo1VA
閥座Seat 25 12Cr1Mo1VA
密封環Sealing ring S軟鋼(增強柔性石墨)S soft steel (flexible graphite) S軟鋼S soft steel F軟鋼F Soft steel
填料Packing 增強柔性石墨Fexible graphite
支架Yoke WCB WCB或WC6
閥杆螺母Stem nut 45(ZCuZn25A16Fe3Mn3)
四開環Four piece ring 1Cr13 20Cr1MoVA
主要尺寸及重量Main dimensions and weight
公稱通徑DNNominal diameter 主要外形尺寸和連接尺寸Main external and connecting dimensions 電動裝置Electric dewice 重量Weight
d L H L1 L2
Z60Y/Z62Y-250
100 84 406 1164 437 277 DZW45 234
125 100 483 1402 437 277 DZW60 343
175 158 711 1650 554 309 DZW180 638
225 200 864 1650 554 309 DZW180 654
